Πως να συνδέσετε ταινία αδιάβροχη.

Connecting RGB Flexible LED Strip to Strip
Solder Connection



Step #1:
Remove about a ¼” of the waterproof coating from the end of the strip. You may use your fingernail (if you use a knife be very careful not to cut through the circuit board).  For best results, clean the contacts with fine sandpaper or a wire brush.

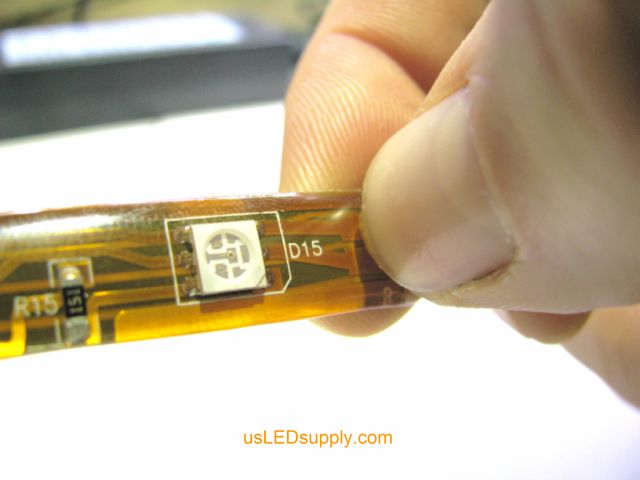

Peel off waterproof coating at the end of the flexible LED strip

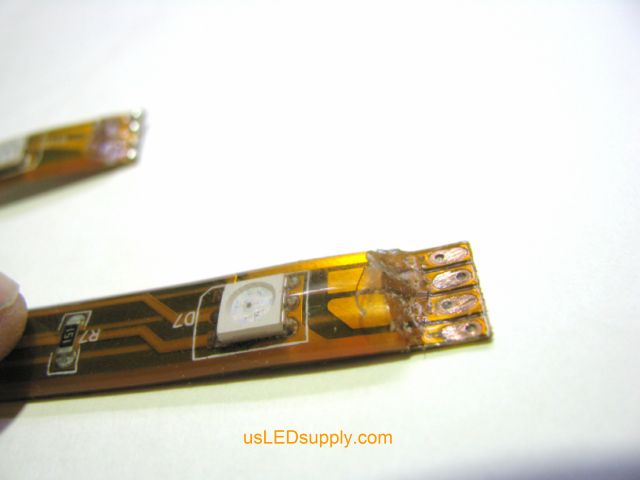

Coating peeled off of the end of flexible LED strip





Step #2: With a hot, clean soldering iron, use Rosin-Core solder to pre-tin the solder pads on the ends of both strips. It won’t take long to heat the strip so be quick!

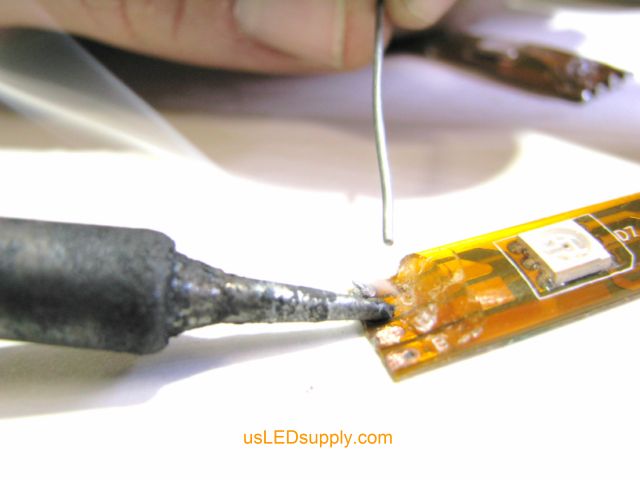

Pre tin the solder pads on the end of each flexible LED strip with Rosin Cor solder

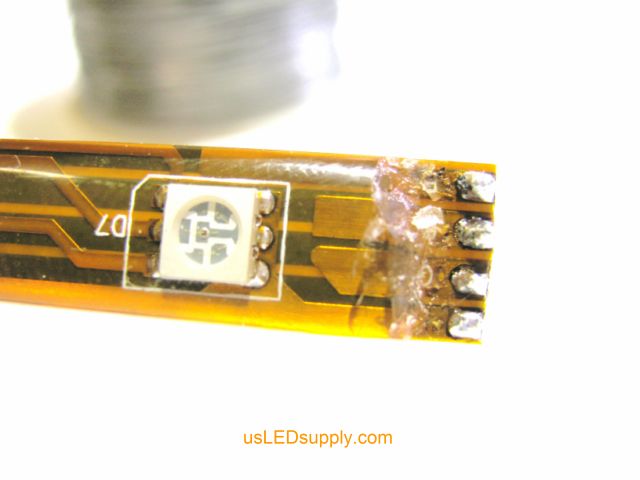

Pre tinned solder pads on the end of the RGB flexible LED strip




Step #3: Solder pre-tinned wires onto the solder pads of the first strip. Try to stay consistent with black as (-) and red (R), green (G), and blue (B) as their respective colors. The wires should be long enough that you can hold on to them while soldering.

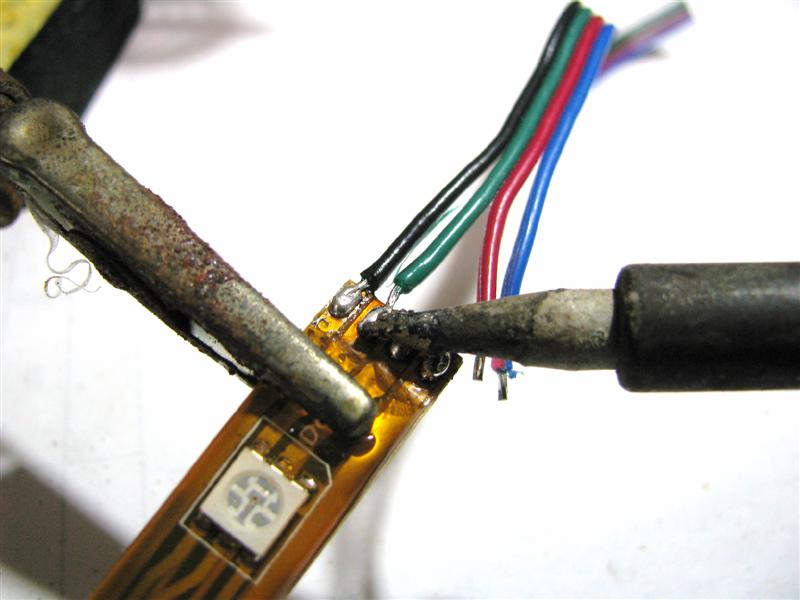

Soldering wires onto the end of RGB Flexible LED Strip

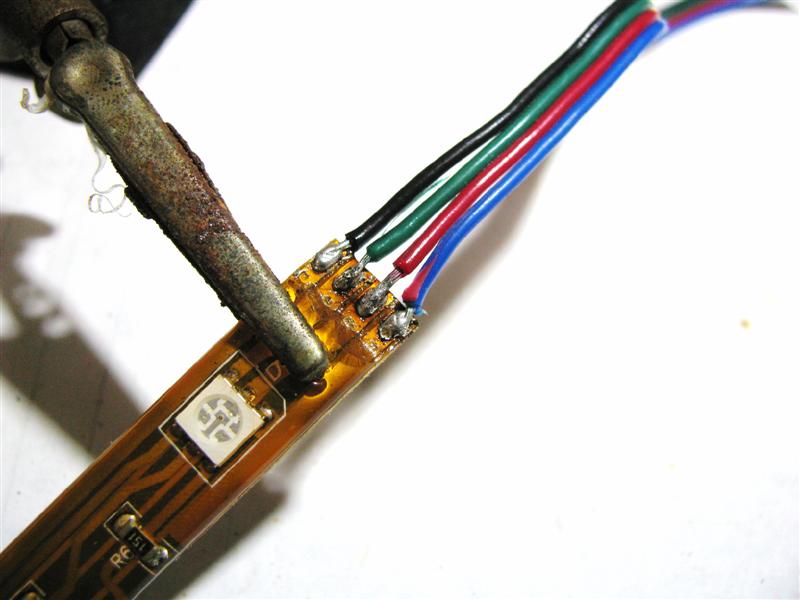

Wires soldered onto the end of RGB Flexible LED Strip






Step #4: Cut off the excess wires, with approximately 1/4” remaining. Pull off the sheaths from these wires, and pre tin them with solder.

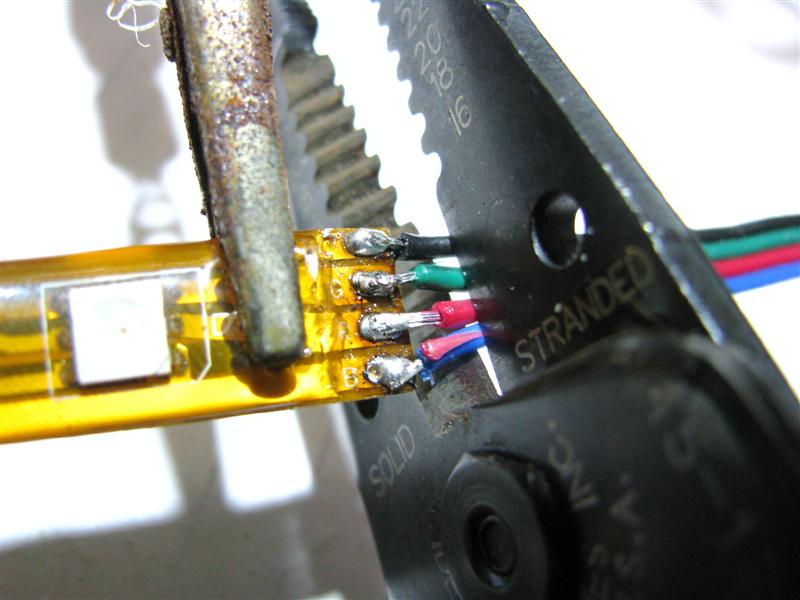

Cut off the excess wires, with approximately 1/4

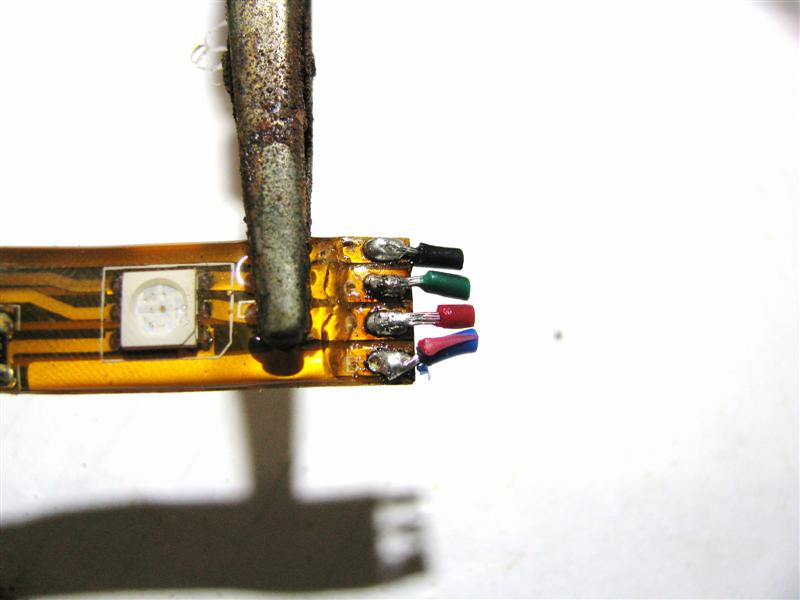

Leave approximately 1/4

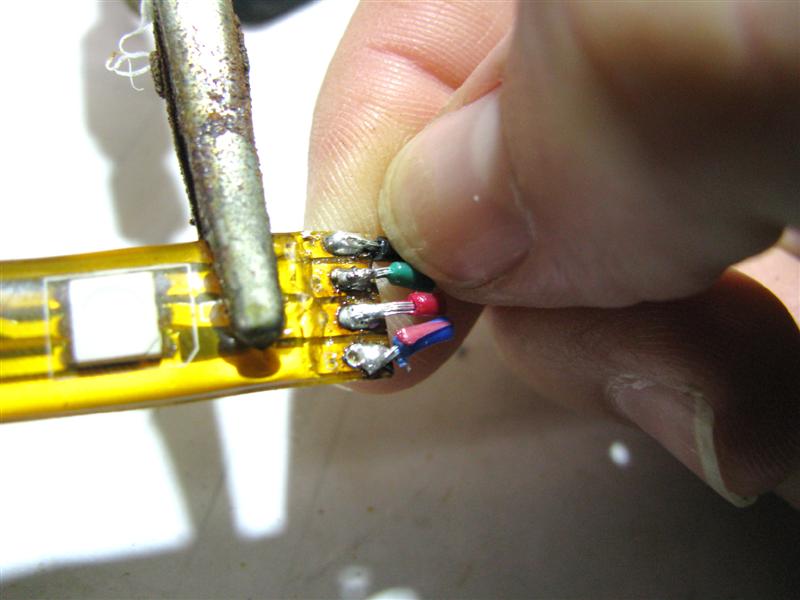

Pull of the sheaths from these wires.

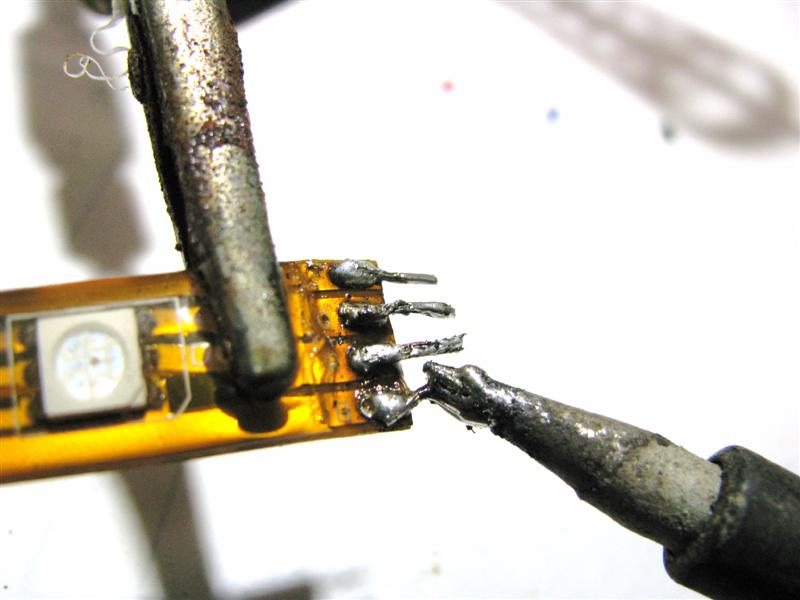

Pre tin stripped ends of wire attached to the RGB flexible LED Strip.






Step #5: With the flex strips touching each other end-to-end, match the color code letters on both strips
(You may have to turn around one of the strips if they don’t match up). Then, solder the wires to the end of
the second strip, forming a bridge.


With the flex strips touching each other end-to-end, match the color code letters on both strips and solder the wires to the end of the second strip, forming a bridge.

Solder connection between two RGB Flexible LED Strips






Step #6: Cover connection with hot melt glue and/or heat shrink tubing for extra protection. Be careful not to burn yourself!


Shrink tubing covering solder connection between two RGB Flexible LED Strips
