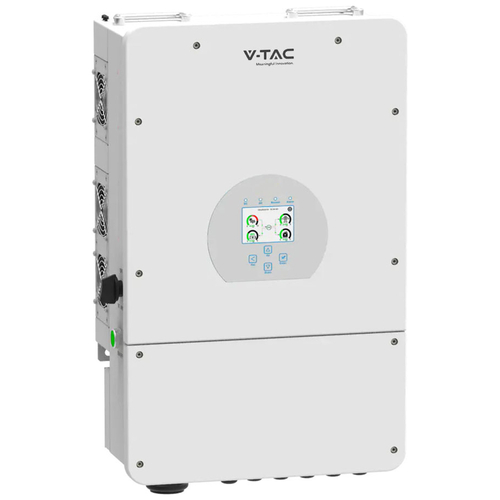

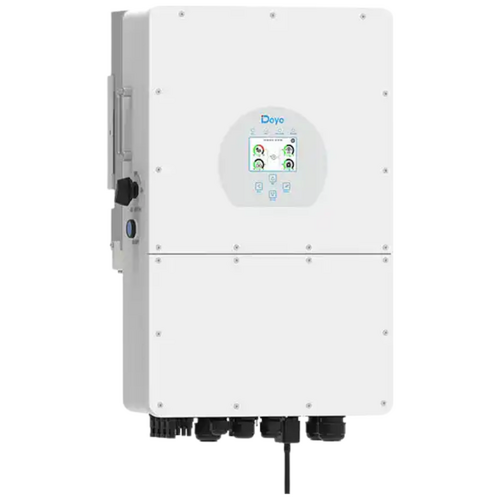

V-TAC Solar Inverter Υβριδικό Τριφασικό On-Off Grid 8KW IP65 με Οθόνη EU 11835 DEYE Υβριδικός SUN-8K-SG04LP3-EU

V-TAC Solar Inverter Υβριδικό Τριφασικό On-Off Grid 8KW IP65 με Οθόνη EU 11835

Electrical Data
Current

• PV Input Current: 13A+13A;
• Max.PV Isc(A): 17A+17A;
• AC Output Rated Current: 12.1/11.6A;
• Max. AC Current: 13.4/12.8A

Wattage

• Max. Input Power: 10400W;
• Rated AC Output and UPS Power: 8000W;
• Max. AC Output Power: 8800W;

Voltage

• PV Input Voltage: 550V (160V~800V);
• MPPT Range: 200V-650V;
• Start-up Voltage:160V;

Frequency50Hz / 60Hz

Capabilities
IP RatingIP65

Working conditions`-40~60℃ , >45℃ Derating

Dimensions
Size422W×702H×281D (Excluding connectors and brackets)

Product Data
Order code11835

Product codeSUN-8K-SG04LP3-EU

Item Weight47.2 kg

Additional
Release Date29.09.2022

BrandV-TAC

Warranty10 years | Option for extended warranty + 5 years
