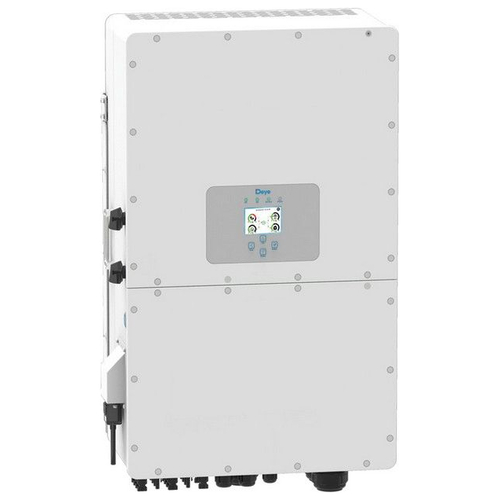

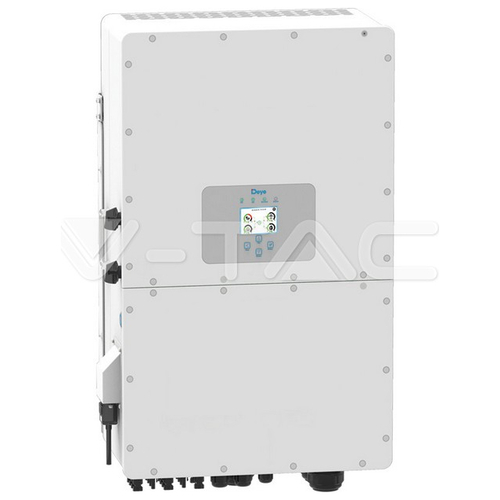

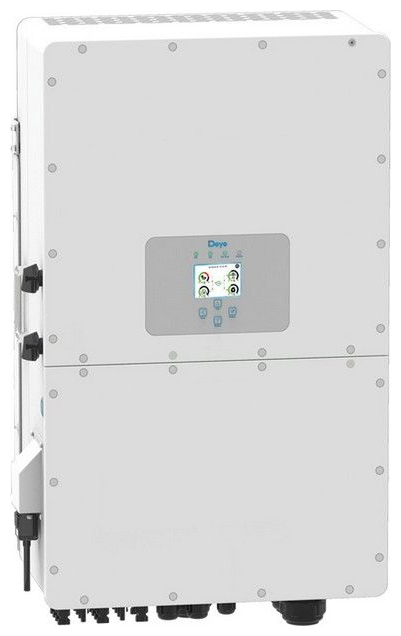

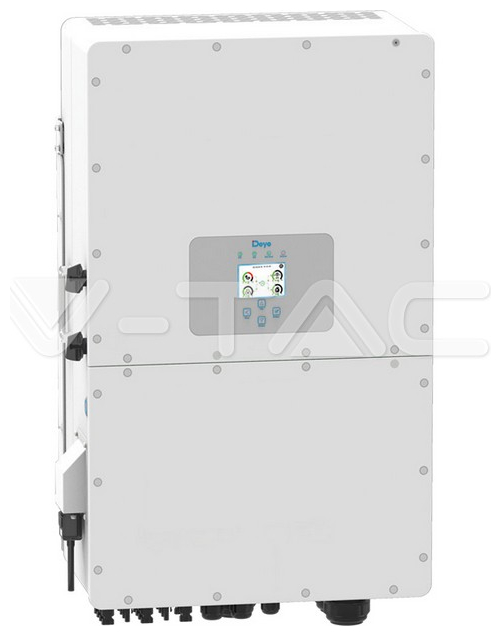

V-TAC 50kWh Hybrid Inverter Three Phase
Electrical Data
Current
- PV Input Current: 36+36+36+36A;
- Max. PV ISC (A): 55+55+55+55
- No.of MPP Trackers: 4
Wattage
- Max. Input Power: 65000W;
- Rated Output Power: 50000W;
- Max. Output Power: 55000W;
Voltage
- Start Voltage: 180V;
- Rated Input Voltage: 600;
- Full-load DC Voltage Range: 450-850V;
- MPPT Voltage Range: 150-850V;
Frequency50Hz / 60Hz
Power Factor0.8 lagging to 0.8 leading
Capabilities
IP RatingIP65
Working conditions-40~60°C, >45°C derating
Dimensions
Size527x894x294 mm
Product Data
Order code11861
Item Weight100 kg
Item Volume0.3821
Items per box1
Additional
Release Date18.12.2023
BrandV-TAC
Warranty10 years
